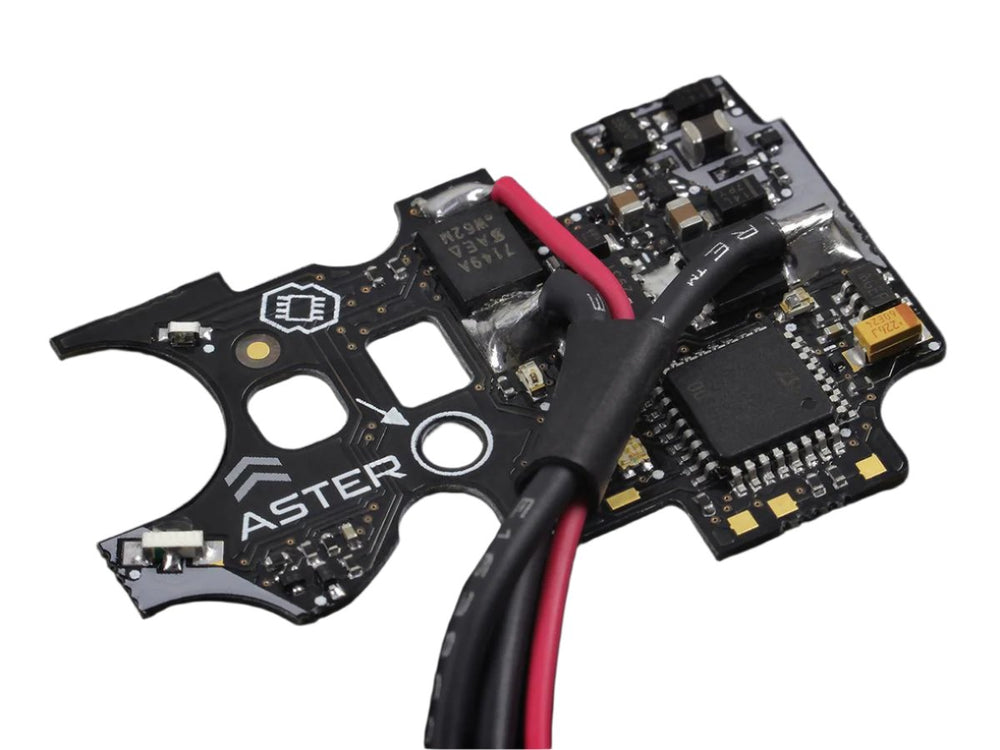

GATE ASTER SE Airsoft Drop-In Programmable MOSFET Module (Model: V2 Expert / Rear Wired / Quantum Trigger)

Features

• App-based control station gives you total control for your AEG
• Able to adjust more features through your trigger than previous models without the need of a USBLink or BluLink. Programming via trigger allows configuration of basic functions
• Conformal coating (Military Specification MIL-V-173C) resistance to atmospheric conditions
• Optical sensors for detecting gear cam, trigger and selector position
• Multiple adjustable options include; fire selector modes, auto and custom pre-cocking, ROF control, low battery warning, active braking, trigger sensitivity
• 343 Programable modes including safe, semi, auto Aug, Semi-Burst, auto-burst and binary.
• Brushless motor compatible
• Noise-resistant trigger detection
• Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
• ASTER is resistant to reverse polarity
• Unlike other models the expert model allows profiles for multiple user pre-configurations

ASTER V2 SE raises the price-performance ratio by including a Quantum Trigger in the set and new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you new settings such as automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and the new SAFE-SEMI-BINARY selector mode. Calibration, DTC codesall available just via trigger and selector movement. Additionally, you get the new noise-resistant trigger detection algorithm. ASTER's smart fuse protects your AEG™s battery, motor, and the controller, even in the case of reverse battery connection. This feature, along with the optical sensors, makes ASTER V2 SE one of the most durable ETUs on the market. ASTER V2 SE is not just a regular ETU/EFCS mosfet. It is a complex system that turns your AEG into future-proof advanced training equipment.

ASTER is not just regular ETU/EFCS mosfet. It is the complex system that turns your AEG into a future-proof advanced training weapon. You choose how to configure the ASTER simply via the trigger or through USB-Link / Blu-Link and our advanced GCS App. You can ask your technician or borrow from friend the very popular USB-Link or Blu-Link and use the GCS app to update ASTERs firmware, carry out diagnostics or change settings in a very convenient way. If you like it you can get your own Blu-Link and use a Smartwatch app, giving you real-time weapon data to reinforce your tactical decisions.

Manufacturer: GATE

Specifications:

Wiring Direction: Rear Wired
Supply Voltage Range: 3.75-12.9 V
Current Consumption: 23 mA
Low Power Mode: 288 µA
Dimensions (Length x Width x Height): 43.8 mm x 28.7 mm x 7.2 mm
Weight: 22.25 g
Operating Temperature Range: min. -15°C max. + 50°C
Relative Humidity: ≤ 80%
Compatibility: Fits most Version 2 Airsoft AEG gearboxes
Package Includes: ASTER Module, "Programming via Trigger" Card, Aster Patch, Installation Kit, Quickstart Guide

How to update firmware:
-plug Aster battery connector into USBlink or BluLink and connect it to a Cell phone or PC with the GCS app installed
-Go to Status panel and select the most current firmware version
-if not already installed, click "update". this process should take ~2 min to install. all of your previous settings will be saved
